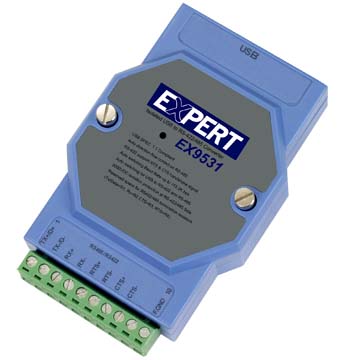

EX9531 – Isolated USB to RS-485 & 422 (TX,RX,RTS,CTS) Converter
CAD$180.00
The EX-9531 convert is an intelligent, stackable expansion module that connects to a PC USB port or USB Hub via the Universal Serial Bus(USB) port, providing one High-Speed RS-422 or RS-485 serial port (jumperless).
Description
The EX9531 convert is an intelligent, stackable expansion module that connects to a PC USB port or USB Hub via the Universal Serial Bus(USB) port, providing one High-Speed RS-422 or RS-485 serial port (jumperless). The EX9531 features easy connectivity for traditional serial devices. The RS-232 standard supports full-duplex communication and handshaking signals (such as RTS, CTS) and the RS-485 control is completely transparent to the user and software written for half-duplex COM works without any modification.

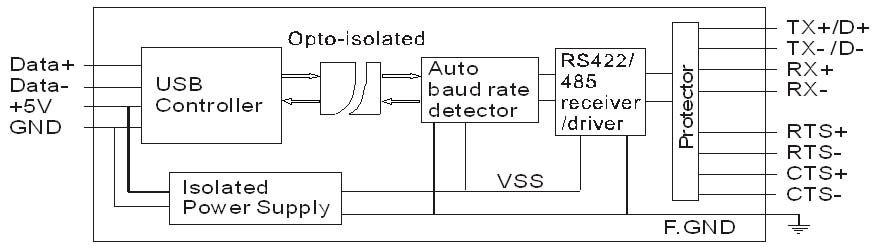

The EX9531’s Opto-isolators provide 3000 Vdc of isolation to protect the host computer from ground loops and destructive voltage spikes on the RS-422/485 data lines.
EX9531 also offer internal surge-protection on their data lines. Internal high-speed transient suppressors on each data line protect the modules from dangerous voltages levels or spikes.
The EX9531 module derives the power from USB port and doesn’t need any power adapter.
Additional information
| Weight | 1 lbs |
|---|
Specifications
| DualWatchdog | |
| Host Watchdog: | yes |
| Module Watchdog: | yes |
| USB Client | |
| Ports: | 1 |
| Speed: | USB 1.1 |
| Connector: | type B |
| RS-422 / 485 | |
| Ports: | 1 • RS-422 / 485 auto switching |
| Speed: | 300 to 115200 bps • AutoPro: auto baud rate switching |
| RS-422: | full duplex • RTS & CTS handshaking |
| RS-485: | auto direction flow control • transient suppression on the data lines |
| Isolation: | 3000 V |

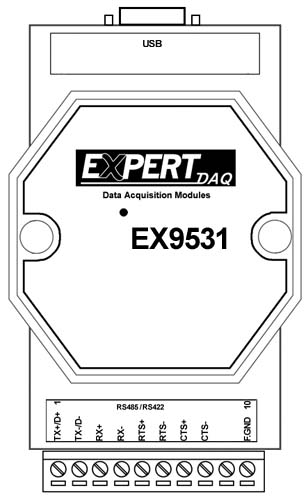

| Connector: | screw terminal block |
| General specification | |
| Power over USB: | via USB |
| Power consumption: | 0.65 W |
| Operating Temperature: | – 25 °C to + 75 °C |
| Storage Temperature: | – 40 °C to + 80 °C |
| Indicator: | LED |
| Included in delivery | |
| Din rail mounting kit: | 1 |
| Wall mounting kit: | 1 |
| Driver CD: | 1 |
| Manual: | 1 |
