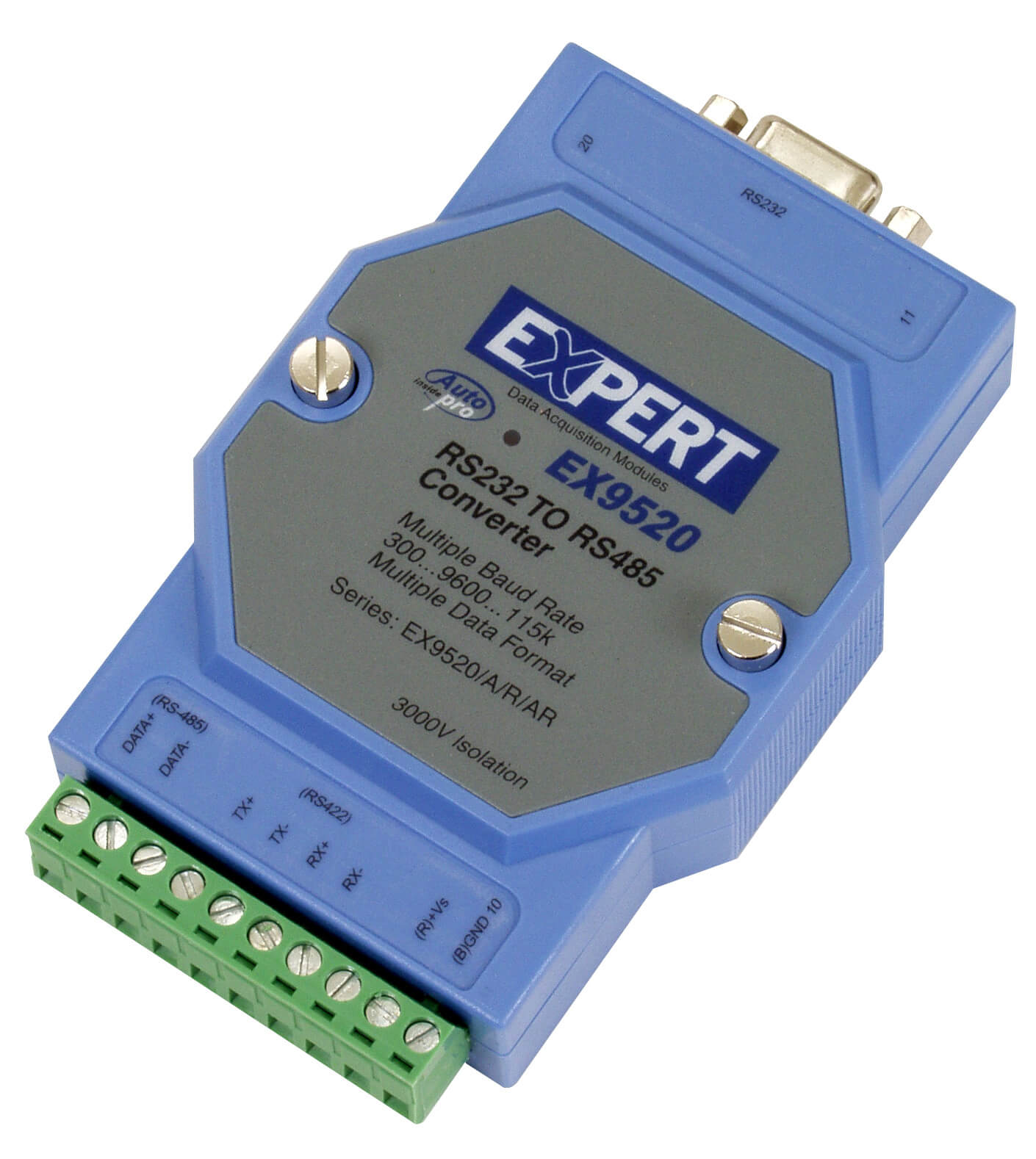

EX9520A – RS232 to RS422/485 Converter
CAD$125.00
The RS232 to RS422 / RS485 Converter enables you to easily link devices communicating via RS232 with a RS485 network. In a RS485 network you may control up to 256 devices.
Description
The RS232 to RS422 / RS485 Converter enables you to easily link devices communicating via RS232 with a RS485 network. In a RS485 network you may control up to 256 devices. Furthermore you may use 2 RS232 to RS485 Converters to build a RS232 bridge via RS485 and thereby extend the maximum cable length from a few meters to 1200 m. You may enlarge the range of your RS485 network with a RS485 Repeater.
The RS232 to RS485 Converter is capable of auto flow control and automatic baud rate switching. You may instead of the EX9520AR get the EX9520AR+ which can be powered with 9V – 48VDC instead of 10V – 30VDC. The RS232 to RS485 Converter can be operated in extended temperature range and the RS422/RS485 input is isolated.
Features:
- Input: RS-232 protocol
- Speed: “AutoPro” designed auto switch baud rate, 300~115200Bps
- 256 modules max. in one RS-485 network without repeater
- 3000V isolation
- Multiple baud rate; multiple data forma
- Communication distance:
2.1km/9600Bs
2.7km/4800Bps
3.6km/2400Bps
Additional information
| Weight | 1 lbs |
|---|
Specifications
Product Compare
|
RS232
|
RS422
|
RS485
|
Isolation
|
|
| EX9520 |
RS232
|
|||
| EX9520R |
RS485
|
|||
| EX9520A |
RS232
|
|||
| EX9520AR |
RS422 / RS485
|
: I/O 1, : I/O 2
