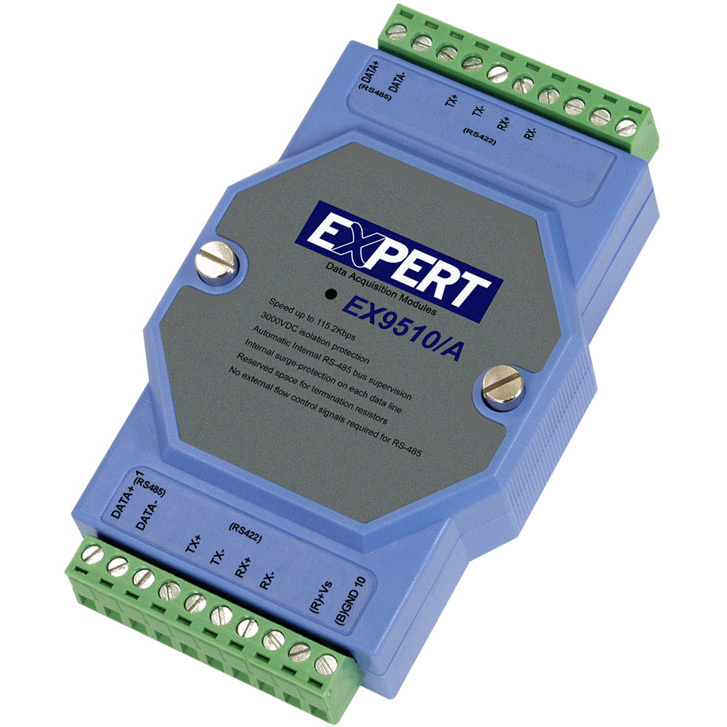

EX9510A – Isolated RS422/485 Repeater
CAD$185.00
The EX9510A repeater boosts the RS-422(EX9510A)/485 signals to extend the reach distance up to 4000 ft (1200m) and increase the maximum number of connected nodes up to 128.
Description
The EX9510A repeater boosts the RS-422(EX9510A)/485 signals to extend the reach distance up to 4000 ft (1200m) and increase the maximum number of connected nodes up to 128. With a special circuitry, EX9510A is able to automatically detect the data flow and switch the direction of the data lines accordingly. “Auto baud rate detector” enables EX9510A to automatically configure RS-422(EX9510A)/485 signals to any baud rate without external switch setting. Build in Opto-isolations on EX9510A provides 3000VDC of isolation to protect the host computer from ground loops and destructive voltage spikes on the RS-422(EX9510A)/485 data lines. EX9510 also offers internal surge-protection on the data lines. Internal high-speed transient suppressors on each data line protect the module from dangerous voltages levels or spikes.
Additional information
| Weight | 1 lbs |
|---|
Specifications
| DualWatchdog | |
| Host Watchdog: | yes |
| Module Watchdog: | yes |
| RS-422 / 485 | |
| Ports: | 2 |
| Speed: | 300 to 115200 bps • AutoPro: auto baud rate switching |
| RS-422: | full duplex |
| RS-485: | transient suppression on the data lines |
| Isolation: | 3000 V |
| Connector: | screw terminal block |
| General specification | |
| Power consumption: | 2.2 W |
| Operating Temperature: | – 25 °C to + 75 °C |
| Storage Temperature: | – 40 °C to + 80 °C |
| Indicator: | LED |
| Included in delivery | |
| Din rail mounting kit: | 1 |
| Wall mounting kit: | 1 |
| Manual: | 1 |
Product Compare
|
RS422
|
RS485
|
Isolation
|
Modbus compatible
|
|
| EX9510 |
RS485
|
|||
| EX9510A |
RS422 / RS485
|
: Interface 1, : Interface 2
