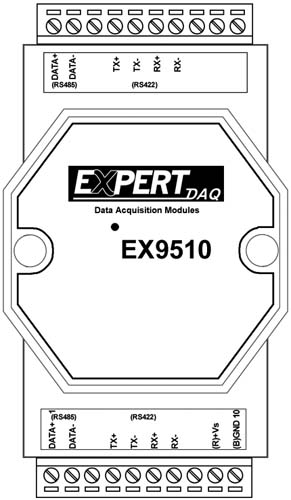

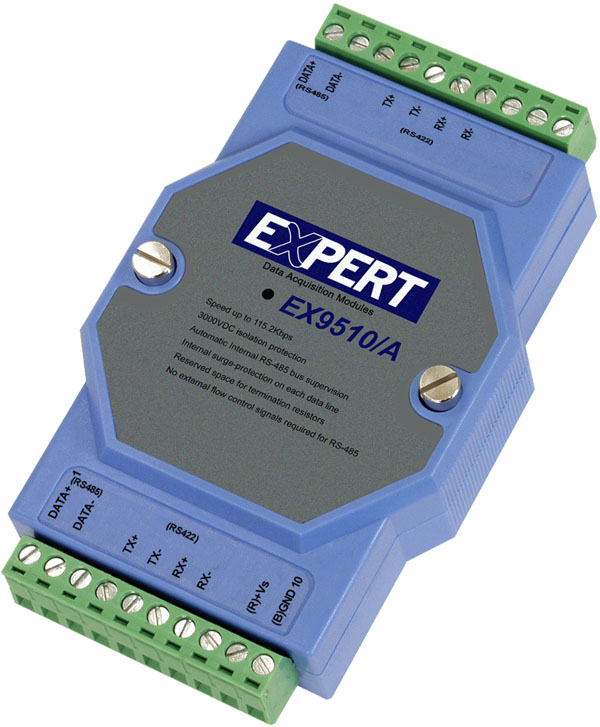

EX9510 – RS485 Repeater (Isolated)
CAD$150.00
ExpertDAQ RS485 Repeater enlarges the range of an RS485 network. In one RS485 network up to 256 devices can be controlled. Without an RS485 Repeater, the maximum cable length is 1200m.
Description
ExpertDAQ’s RS485 Repeater boosts the range of an RS485 network. In one RS485 network, up to 256 devices can be controlled. Without an RS485 Repeater, the maximum cable length is 1200m.The EX9510 has automatic baud rate switching and was developed for use in a wide temperature range. The inputs are isolated. The RS485 repeaters are robust, power saving and easy to use.
Features:
- Extended temperature range (- 25 °C to + 75 °C)
- Isolated inputs
- Automatic baud rate switching
- Support Modbus-RTU
Additional information
| Weight | 1 lbs |
|---|
Specifications
| Dual Watchdog | |
| Host Watchdog: | yes |
| Module Watchdog: | yes |

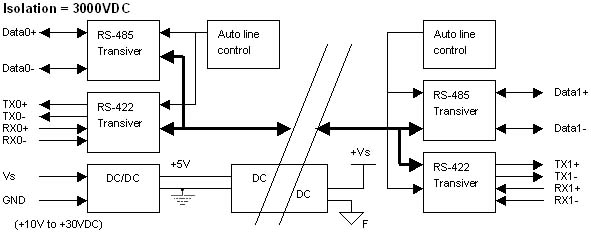

| RS-485 | |
| Ports: | 2 |
| Speed: | 300 to 115200 bps • AutoPro: auto baud rate switching |
| RS-485: | transient suppression on the data lines |
| Isolation: | 3000 V |
| Connector: | screw terminal block |
| General Specifications | |
| Power consumption: | 2.2 W |
| Operating Temperature: | – 25 °C to + 75 °C |
| Storage Temperature: | – 40 °C to + 80 °C |
| Indicator: | LED |
| Included in delivery | |
| Din rail mounting kit: | 1 |
| Wall mounting kit: | 1 |
| Manual: | 1 |

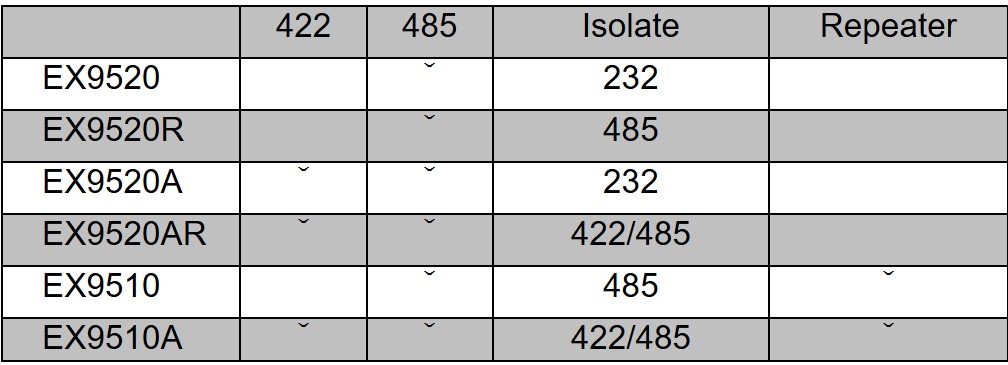

Product Compare
|
RS422
|
RS485
|
Isolation
|
Modbus compatible
|
|
| EX9510 |
RS485
|
|||
| EX9510A |
RS422 / RS485
|
: Interface 1, : Interface 2
