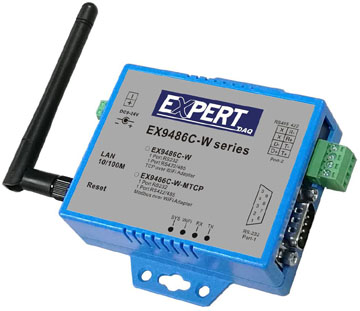

EX9486C-W – Serial to Wireless LAN

Description

With the help of the EX9486C-W Serial to Wireless LAN, you can easily integrate serial devices to a WLan network. The WLan Converter can communicate via WLan standards 802.11 b/g. The baud rate of the RS422 / RS485 port gets automatically switched between 300bps and 230.4k bps. The WLan Converter is designed to operate in a wide temperature range. The configuration of transmission parameter can be done with a web interface. Included Virtual Com Software for Windows 32 bit can be downloaded for free (see download tab).

Ethernet:

● Port Type : RJ-45 Connector
● Speed: 10 /100 M bps ( Auto Detecting )
● Protocol: ARP , IP , ICMP , UDP , TCP , HTTP , DHCP, PPPoE , DDNS , NTP , FTP , Telnet
● Mode: TCP Server / TCP Client / UDP
● Setup: HTTP Browser Setup (IE & Netscape) , Console
● Security: Setup Password
● Protection: Built-in 1.5KV Magnetic Isolation

Serial:

● No. of ports : 1 * RS-232(Male DB9), 1 * RS-422/485(4-pin Terminal Block)
● RS-232 Signals : TxD, RxD and GND only
● RS-422 Signal : Tx+ , Tx- , Rx+ , Rx –
● RS-485 Signal : Data+ , Data-
● Serial Line Protection : 15 KV ESD for all signals
● Parity: None, Even, Odd, Space, Mark
● Data bits: 5, 6, 7, 8
● Stop bits: 1, 2
● Speed: 300 bps to 230.4K bps
