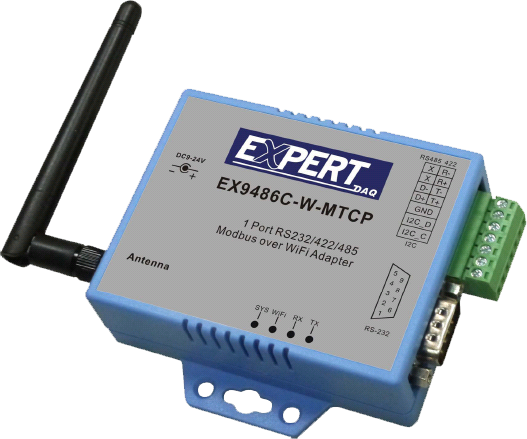

EX9486C-W-MTCP – Modbus TCP(WiFi) to Modbus RTU/ASCII simple gateway
CAD$330.00
The EX9486C-W-MTCP provides a simple and cost effective solution to control Modbus RTU devices from a Modbus TCP/IP server via Wi-Fi.
Description
The EX9486C-W-MTCP Modbus TCP(WiFi) to Modbus RTU/ASCII simple gateway provides a simple and cost effective solution to integrate serial devices with Modbus RTU protocol in a local area network (LAN). Thus, it is possible to control Modbus RTU devices from a Modbus TCP/IP server via Wi-Fi. The compact and mechanically robust PVC housing is designed for industrial environments. The EX9486C-W-MTCP supports Wi-Fi, has one RS-232/422/485 serial port that is selectable.
Features:
• Modbus RTU/ASCII Slave to Modbus TCP Master
• Modbus TCP Slave to Modbus RTU/ACSII Master
• Modbus modes*4 Browser selectable
• Support 8 TCP Masters simultaneously
• Support serial Master access to 8 TCP Slaves
• Web Browser Configuration
• Easy Wireless setup by PC or Mobile
• Supports 802.11b/g/n
Additional information
| Weight | 1 lbs |
|---|
Specifications
| System | |
| Type: | ARM-9 CPU Linux OS, 200MHz |
| SRAM: | 32MB |
| Flash ROM: | Flash ROM: 64Mbits |
| DualWatchdog | |
| Module Watchdog: | Built in H/W Watchdog timer |
| Ethernet | |
| Protocol: | HTTP, DHCP, ModbusTCP to Modbus-RTU/ Modbus-ASCII |
| Modbus TCP: | Modbus TCP Server/ Virtual COM |
| WLan: | WLan: 802.11b/g/n |
| rate: | 54 Mbps |
| security: | WEP 64-bit / 128-bit data encryption, AES, WPA / WPA2 personal, WPS2.0, WAPI |
| antenna: | 2 dBi RP-SMA connector |
| RS-232 / 422 / 485 | |
| Ports: | 1 |
| Speed: | 300 bps〜115.2K bps |
| RS-232: | Rx, Tx, GND |
| RS-422: | Rx+ , Rx- , Tx+ , Tx- (Surge & Over Current Protect) |
| RS-485: | Data+ , Data- (Surge & Over Current Protection) |
| Connector: | DB9 male * 1 and Terminal Block(7pin) * 1 |
| General specification | |
| Power requirements: | DC 9 – 24V , 500mA |
| Operating Temperature: | 0℃〜70℃ |
| Storage Temperature: | -10℃〜80℃ |
| Dimensions: | 115 * 90 * 27 mm ( W * D * H ) |
| Weight: | 140 gm |
| Regulation | |
| CE: | yes |
| FCC: | YES |
