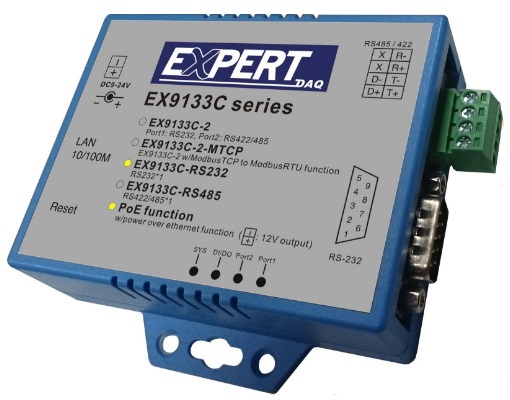

EX9133C-2-MTCP – Serial to Ethernet Converter (RS422/485*1, RS232*1)

Description

The EX9133C-2-MTCP provides a simple and cost-effective solution to integrate serial devices with Modbus RTU protocol in a local area network (LAN) or Wide Area Network (WAN). Thus, it is possible to control Modbus RTU devices from a Modbus TCP/IP server via Ethernet, Intranet, and the Internet. The compact and mechanically robust PVC housing is designed for industrial environments. The EX9133C-2-MTCP has two serial ports, one RS-232, and RS-422/485 port.

Ethernet:

● Port Type RJ-45 Connector
● Speed 10 /100 M bps ( Auto Detecting )
● Mode Modbus TCP Client/Server
● Setup HTTP Browser Setup
● Security Setup Password
● Protection Built-in 1.5KV Magnetic Isolation

Protocol:

● ModbusTCP to Modbus-RTU/ASII Slave
● Modbus RTU/ASCII to ModbusTCP slave

Serial Port * 2 ports:

● Port RS-232 * 1 Port (DB9) , RS-422/485 * 1 Port ( Auto Detect )
● Speed 300 bps~115.2 K bps
● Parity None , Odd , Even , Mark , Space
● Data Bit 5 , 6 , 7 , 8
● Stop Bit 1 , 2
● Port-1:
RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
● Port-2:
RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals
