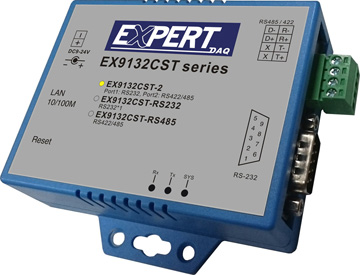

EX9132CST-2 – Serial to Ethernet Converter (RS422/485*1, RS232*1)

Description

With the help of EX9132CST-2 Serial to Ethernet Converter (RS422/485*1, RS232*1), you can easily integrate serial devices in a LAN-network. The EX9132CST-2 has two connectors, one RS232 and one RS422 / RS485. The Ethernet Converter can be operated in a wide temperature range. Set up is easy because the transmission parameters can be adjusted via a web interface. Virtual Com Software for Windows system can be downloaded for free (see download tab).

Features:

CPU: ST ARM Cortex-M3 32 bit processor, 72MHz

RAM: 64 K Bytes SRAM

ROM: 256 K Bytes Flash ROM

Ethernet:
     ● Port Type RJ-45 Connector
     ● Speed 10 /100 M bps ( Auto Detecting )
     ● Mode: TCP Server∕TCP Client∕UDP Client/Virtual COM/Pairing
     ● Setup HTTP Browser Setup
     ● Security Setup Password
     ● Protection Built-in 1.5KV Magnetic Isolation

Serial Port * 2 ports:

● Port RS-232 * 1 Port (DB9) , RS-422/485 * 1 Port ( Auto Detect )
● Speed 300 bps~115.2 K bps
● Parity None , Odd , Even , Mark , Space
● Data Bit 7 , 8
● Stop Bit 1 , 2
● Port-1: RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
● Port-2:
RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals
