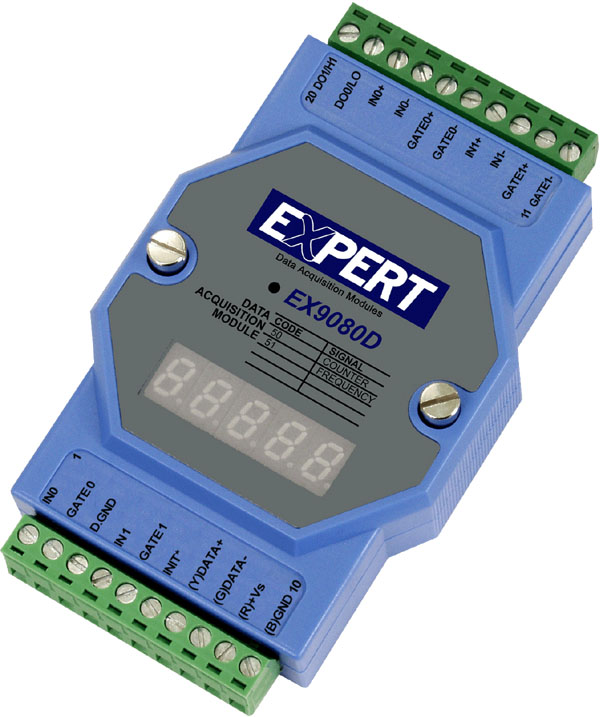

EX9080RD-M – 2 channel isolated counter/frequency input, 2 channel open collector output module with Modbus RTU and 7 segment LED

Description

ExpertDAQ RS485 Timer / Counter have been developed for professional use in industry. The RS485 Timer / Counter are controllable via RS485 and are available with Modbus RTU. Within one RS485 network, up to 256 module can be controlled.

The EX9080DR-M has 2 digital input which can measure frequencies between 1Hz and 100kHz. The Counter has 32bit memory. The digital Output can emit currents up to 30mA at 30V. The EX9080DR-M has a programmable Start-Value and alarm function. The EX9080DR-M has a 4,5-digit 7-segment LED-display and can be operated in a wide temperature range.

Features:

• 2 digital input channels
• Measure frequency from 1Hz – 100kHz
• Maximum current 30mA at 30V
• Digital Level 0: <+1V – Digital Level 1: 3,5-30V
• Overvoltage protection up to 3750V
• 32bit counter (4.294.967.295)
• Programmable alarm function
• Programmable start-value
• 4,5-digit 7-segment LED-display
• Output as RS485-interface
• Communicate via Modbus-RTU
• Manual configuration or with supplied software
• Power supply 10 – 30VDC
• Hard- and Software Watchdog
