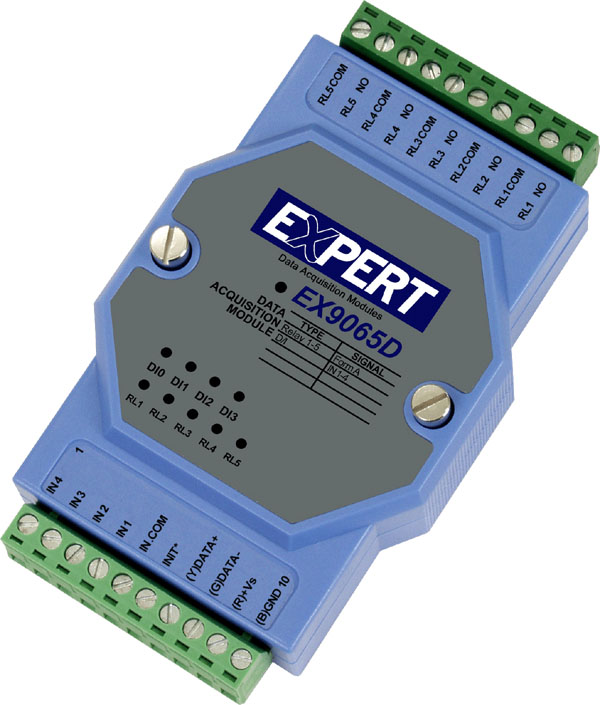

Name: EX9065AD - RS485 relay module - 4 channel digital input, 5 channel AC-SSR relay output with LED
SKU: 1349
Price: 188.02 CAD
Availability: InStock

Description

ExpertDAQ Relay modules communicate via RS485 and are available with Modbus RTU. Within one RS485-network up to 256 modules may be controlled. Without an RS485 Repeater, the maximum cable length is 1200m. The RS485 Relay modules are sturdy, power saving and easy to use.

The EX9065AD has 5 AC-SSR Outputs which are capable of carrying currents up to 1A at 24VAC to 265VAC. The EX9065AD has a short operating time. The EX9065AD has a LED-display for each channel and was developed for use in a wide temperature range.

Features:

5 relay AC-SSR output channels
Maximum current 1A at 24VAC – 265VAC
Digital Level 0: <+1V – Digital Level 1: 4 – 30V
Lifetime at least 10^5 operating cycles
LED-display for each channel
Extended temperature range
Input-Output galvanically isolated
Output as RS485-interface
Manual configuration or with supplied Software
Power supply 10 – 30VDC
Hard and Software Watchdog

Additional information

Weight	1 lbs

Specifications

DualWatchdog
Host Watchdog:	yes
Module Watchdog:	yes
RS-485
Ports:	1
Speed:	300~115200 bps
Connector:	screw terminal block
Digital input
Channels:	4 single-ended
Logic 0:	0 to 1 V
Logic 1:	4 to 30 V
Connector:	screw terminal block
Digital output
Channels:	5 Relay type AC-SSR
Switching Current AC:	1.0 A@24 to 265 V
On/off response time:	1 ms / 2 ms
Break down voltage:	2500 V
Connector:	screw terminal block
General specification
Power consumption:	1.6 W
Operating Temperature:	– 25 °C to + 75 °C
Storage Temperature:	– 40 °C to + 80 °C
Indicator:	LED
Included in delivery
Din rail mounting kit:	1
Wall mounting kit:	1
Driver CD:	1
Manual:	1
