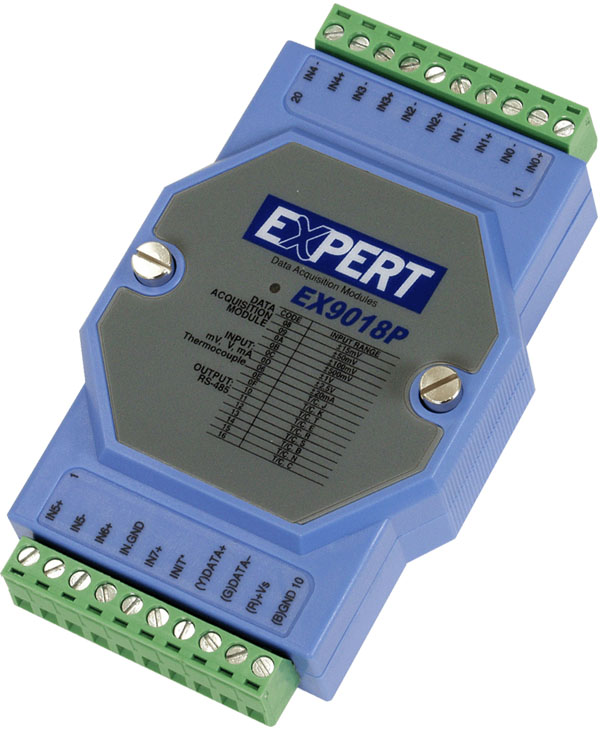

Name: EX9018BL-M - Modbus RTU 8 thermocouple input
SKU: 1211
Price: 245.14 CAD
Availability: InStock

Description

The EX9018BL-M Analog In 16bit module for thermocouple excels at use for temperature measurement with one of the sensors B, C, E, J, K, N, R, S, T or may be used to measure analogue voltages in the measuring ranges ±15mV, ±50mV, ±100mV, ±500mV, ±1V and ±2,5V or currents between ±20mA with a sampling rate of 10 Hz. The Analog In RS485 module has open-loop detection and can be operated in a wide temperature range.

Features:

Measure voltages in measuring ranges from ±15mV to ±2,5V
Support all popular thermocouple
Break-line detection
Output as RS485 interface
Communicate via Modbus-RTU
Input-Output galvanically isolated
Manual configuration or with supplied software
Power supply 10 – 30VDC

Additional information

Weight	1 lbs

Specifications

DualWatchdog
Host Watchdog:	yes
Module Watchdog:	yes
RS-485
Ports:	1
Speed:	300~115200 bps
Modbus RTU:	yes
Connector:	screw terminal block
Analog input
Channels:	8 differential
Resolution:	16 bit
Total sample rate:	10 Hz
Voltage range:	± 15 mV ± 50 mV ± 100 mV ± 500 mV ± 1 V ± 2.5 V
Voltage impedance:	20 MOhm
Current range:	± 20 mA (extern 125 Ohm Widerstand erforderlich)
Current impedance:	125 Ohm
Sensor Input
J:	– 210°C…760°C
K:	– 270°C…1372°C
T:	– 270°C…400°C
E:	– 270°C…1000°C
R:	0°C…1768C
S:	0°C…1768°C
B:	0°C…1820°C
N:	– 270°C…1300°C
C:	0°C…2320°C
Accuracy:	± 0.1 %
Zero Drift:	± 0.5 µV/°C
Span Drift:	± 25 ppm/°C
Isolation:	3000 V
Open loop detection:	yes
Connector:	screw terminal block
General specification
Power consumption:	2.0 W
Operating Temperature:	– 25 °C to + 75 °C
Storage Temperature:	– 40 °C to + 80 °C
Included in delivery
Din rail mounting kit:	1
Wall mounting kit:	1
Driver CD:	1
Manual:	1
